✅ มีการรับประกันศูนย์ 5 ปี ✅ สามารถออกใบกำกับภาษีได้ ✅ Power consumption of only 1 W ✅ Fast 3-step web-based configuration ✅ Surge protection for serial, Ethernet, …
✅ มีการรับประกันศูนย์ 5 ปี
✅ สามารถออกใบกำกับภาษีได้
✅ Power consumption of only 1 W
✅ Fast 3-step web-based configuration
✅ Surge protection for serial, Ethernet, and power
✅ COM port grouping and UDP multicast applications
✅ Screw-type power connectors for secure installation
✅ Real COM and TTY drivers for Windows, Linux, and macOS
✅ Standard TCP/IP interface and versatile TCP and UDP operation modes
✅ Connects up to 8 TCP hosts
✅ Baudrate : 50 bps to 921.6 kbps
✨✨✨ A Greener Serial-to-Ethernet Solution ✨✨✨

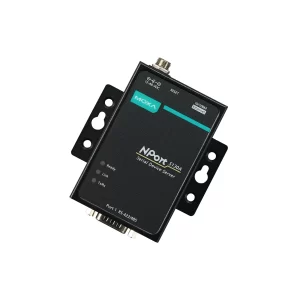

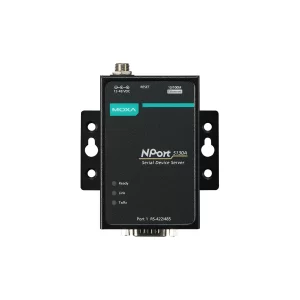

The MiiNe is a small but powerful Arm-based serial-to-Ethernet SoC with RAM and Flash embedded. With the MiiNe inside, the NPort® 5110A Series' power consumption is less than 1 W. The NPort® 5100A Series saves at least 50% on power consumption compared to existing solutions on the market, helping engineers meet the tough environmental compliance challenges found in today’s industrial environments.
✨✨✨ Surge Protection for Serial, Ethernet, and Power ✨✨✨
Surge, which is typically caused by high voltages that result from switching and lightning transients, is a common threat to all electrical devices. Moxa’s leading-edge surge immunity solution, which is applied to the NPort® 5100A’s serial, power, and Ethernet lines, is tested and proven compliant with IEC 61000-4-5. This state-of-the-art surge protection provides a robust serial-to-Ethernet solution that can protect electrical devices from voltage spikes and withstand electrically noisy environmental conditions.
✨✨✨ Specifications ✨✨✨
🔻 Ethernet Interface 🔻
📌 10/100BaseT(X) Ports (RJ45 connector) - 1
📌 Magnetic Isolation Protection - 1.5 kV (built-in)
🔻 Security Functions 🔻
📌 Authentication - Local database
📌 Encryption - HTTPS, AES-128, SHA-1, RSA-1024, SHA-256
📌 Security Protocols - HTTPS (TLS 1.2)
🔻 Serial Interface 🔻
📌 Connector - DB9 male
📌 No. of Ports - 1
📌 Serial Standards - RS-422, RS-485
📌 Operation Modes - Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP
📌 Baudrate - Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
📌 Data Bits - 5, 6, 7, 8
📌 Stop Bits - 1, 1.5, 2
📌 Parity - None, Even, Odd, Space, Mark
📌 Flow Control - RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
📌Pull High/Low Resistor for RS-485 - 1 kilo-ohm, 150 kilo-ohms
📌 RS-485 Data Direction Control - ADDC (automatic data direction control)
📌 Terminator for RS-485 - 120 ohms
🔻 Power Parameters 🔻
📌 No. of Power Inputs - 1
📌 Input Current - 89.1 mA @ 12 VDC
📌 Input Voltage - 12 to 48 VDC
📌 Source of Input Power - Power input jack
🔻 Reliability 🔻
📌 Automatic Reboot Trigger - Built-in WDT
🔻 Physical Characteristics 🔻
📌 Housing - Metal
📌 Dimensions (with ears) - 75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in)
📌 Dimensions (without ears) - 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in)
📌 Weight - 340 g (0.75 lb)
📌 Installation - Desktop, DIN-rail mounting (with optional kit), Wall mounting
