✅ Dimensions: 435x287x415 mm. (With Feet)
🔶NZXT H6 FLOW Compact Dual-Chamber Mid-Tower Airflow Case เคสคอมพิวเตอร์ ของแท้ ประกันศูนย์ 2ปี🔶
✨✨✨ Details ✨✨✨

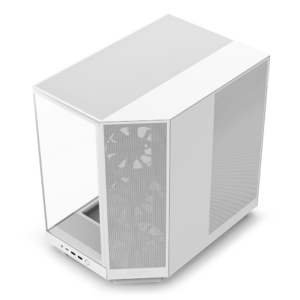

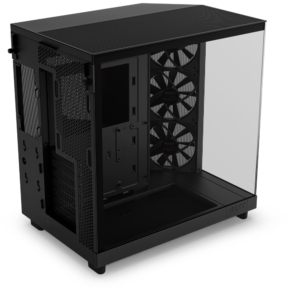

Experience peak performance within an innovative compact dual-chamber. Prioritizing GPU cooling, the H6 Flow's panoramic glass showcases the interior while freeing up space for improved airflow.
📌 Wraparound glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components.
📌 Compact dual-chamber design improves overall thermal performance and creates a clean, uncrowded aesthetic.
📌 Includes three pre-installed 120mm fans (Case Version) positioned at an ideal angle for superb out-of-the-box cooling.
📌 The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust.
📌 An intuitive cable management system simplifies the build process by using wide channels and straps.
📌 Tool-free access to the top and side panels makes upgrading quick and convenient.
📌 Top panel supports radiators up to 360mm in length. Up to 365mm GPU and 200mm PSU clearance
🟣 Panoramic Paneling 🟣
Wraparound glass provides an unobstructed view of the inside.
🔵 Compact Dual-Chamber 🔵
Improves cooling performance and creates an uncrowded aesthetic.
🟡 Out-of-the-Box Cooling 🟡
3 x 120mm fans are angled for optimal out-of-the-box cooling.
🟢 High Performance Airflow 🟢
Perforation pattern on the panels is optimized for maximum airflow.
🟠 Cable Management 🟠
Easily manage cables with the wide channels and included straps.
🟣 Tool-Free Entry 🟣
Access the top and side panels without tools for quick upgrades.
🔵 Spacious Support 🔵
Up to a 360mm radiator in the top and clearance for a 365mm GPU.
✨✨✨ Specifications ✨✨✨
🔻 KEY SPECS 🔻
🔹 Motherboard Support:ATX, Micro-ATX, Mini-ITX
🔹 Enclosure Type:Mid-Tower
🔹 Case Material:SGCC Steel, Ultra-Clear Tempered Glass, Dark Tinted Tempered Glass (Black SKU only)
🔻 DIMENSIONS 🔻
🔹 Height (with feet):435 mm / 17.13 in
🔹 Width:287 mm / 11.3 in
🔹 Depth:415 mm / 16.34 in
🔹 Weight:9.4 kg
🔻 COMPATIBILITY & CLEARANCE 🔻
🔹 CPU Cooler Height:163 mm / 6.42 in
🔹 GPU Length:365 mm / 14.37 in
🔹 PSU Length:200 mm / 7.87 in
🔹 Cable Management:91 mm / 3.58 in
🔹 Top Radiator:30 mm / 1.18 in
🔻 FRONT I/O PORTS 🔻
🔹 USB 3.2 Gen 1 Type-A:2
🔹 USB 3.2 Gen 2 Type-C:1
🔹 Headset Audio Jack:1
🔻 EXPANSION SLOTS 🔻
🔹 Standard:7
🔹 Vertical:0
🔻 DRIVE BAYS 🔻
🔹 2.5":2
🔹 3.5":1
🔻 FAN SUPPORT 🔻
🔹 Front-Right:3 x 120 mm (3x F120Q Case Version included)
🔹 Top:3 x 120 mm / 2 x 140 mm
🔹 Bottom:2 x 140 mm
🔹 Rear:1 x 120 mm
🔹 Filters:High-Performance Mesh
🔻 RADIATOR SUPPORT 🔻
🔹 Top:Up to 360 mm
🔹 Rear:Up to 120 mm
🔻 FAN SPECS 🔻
🔹 Model:F120Q Airflow Fan (Case Version)
🔹 Speed:1200 ± 240RPM
🔹 Airflow:62.18 CFM
🔹 Static:1.05 mm - H2O
🔹 Noise:25.1 dBA
🔹 Fan Connector:3-pin
