✅ Dimensions: 495x290x466 mm. (With Feet)
🔶NZXT H9 ELITE Premium Dual-Chamber Mid-Tower Airflow Case เคสคอมพิวเตอร์ ของแท้ ประกันศูนย์ 2ปี🔶
✨✨✨ Details ✨✨✨
The H9 Elite is designed to show off every angle of your build with a tempered glass top panel and a built-in RGB & Fan Controller. The unique wraparound glass design with a dual-chamber layout is the perfect showcase for premium components.
📌 Unique uninterrupted glass panel for a clear view of the interior
📌 Intuitive cable management and dual chamber design
📌 Room for ten fans or three 360mm Radiators
📌 Tempered glass top panel and included RGB & Fan Controller
📌 Direct airflow to the GPU for handling high-powered components
📌 Enhanced experience with other products from the NZXT ecosystem
📌 Includes three F Series 120mm RGB Duo Fans and one F120Q Fan (Case Version)
✨✨✨ Inside the Box ✨✨✨
🔹 H9 Elite Case - 1
🔹 120mm RGB Duo Fan - 3
🔹 120mm Quiet Airflow Fan (Case Version) - 1
🔹 RGB and Fan Controller - 1
🔹 Installation Accessories - 1
🔹 Manual - 1

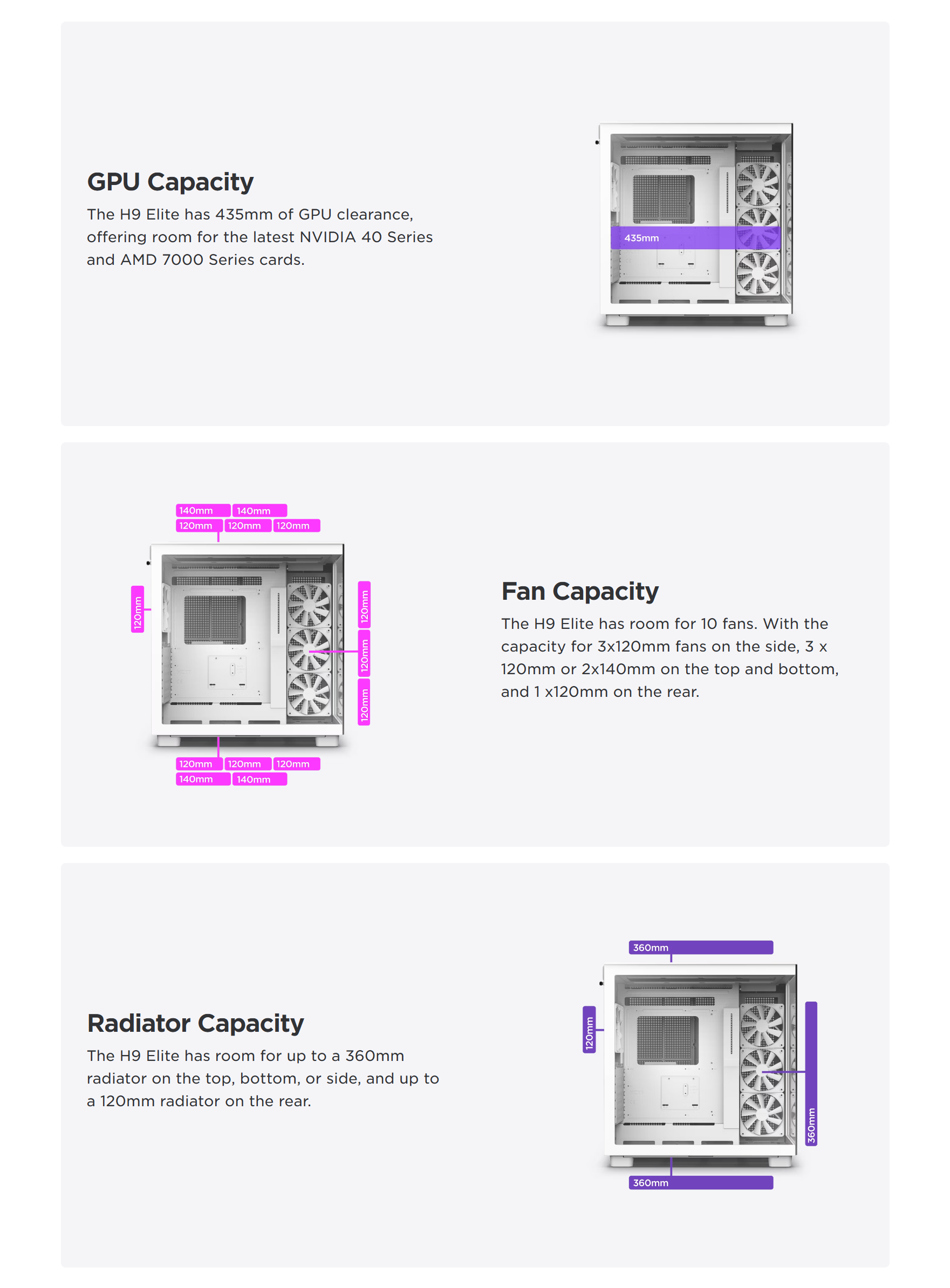

✨✨✨ GPU Capacity ✨✨✨
The H9 Elite has 435mm of GPU clearance, offering room for the latest NVIDIA 40 Series and AMD 7000 Series cards.
✨✨✨ Fan Capacity ✨✨✨
The H9 Elite has room for 10 fans. With the capacity for 3x120mm fans on the side, 3 x 120mm or 2x140mm on the top and bottom, and 1 x120mm on the rear.
✨✨✨ Radiator Capacity ✨✨✨
The H9 Elite has room for up to a 360mm radiator on the top, bottom, or side, and up to a 120mm radiator on the rear.
✨✨✨ Specifications ✨✨✨
🔻 KEY SPECS 🔻
🔹 Motherboard Support:Mini-ITX, Micro-ATX, ATX
🔹 Enclosure Type:Mid-Tower
🔹 Case Material:SGCC Steel, TUltra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)
🔻 DIMENSIONS 🔻
🔹 Height:495mm (With Feet)
🔹 Width:290mm
🔹 Depth:466mm
🔹 Weight:13.1 kg
🔻 COMPATIBILITY & CLEARANCE 🔻
🔹 CPU Cooler Clearance:Up to 165mm
🔹 GPU Clearance:Up to 435mm
🔹 PSU Clearance:200mm
🔹 Cable Management:91mm
🔻 FRONT I/O PORTS 🔻
🔹 USB 3.2 Gen 1 Type-A:2
🔹 USB 3.2 Gen 2 Type-C:1
🔹 Headset Audio Jack:1
🔻 EXPANSION SLOTS 🔻
🔹 Standard:7
🔹 Vertical:0
🔻 DRIVE BAYS 🔻
🔹 2.5":4+2
🔹 3.5":2
🔻 FAN SUPPORT 🔻
🔹 Side:3 x 120mm
🔹 Top:3 x 120mm / 2 x 140mm
🔹 Bottom:3 x 120mm / 2 x 140mm
🔹 Rear:1 x 120mm
🔹 Filters:All Air Intakes
🔻 RADIATOR SUPPORT 🔻
🔹 Side:Up to 360mm
🔹 Top:Up to 360mm
🔹 Bottom:Up to 360mm
🔹 Rear:Up to 120mm
🔻 FAN SPECS 🔻
🔹 Model:F120Q (Case Version)
🔹 Speed:1200 ± 240RPM
🔹 Airflow:62.18 CFM
🔹 Static:1.05 mm - H2O
🔹 Noise:25.1 dBA
🔹 Fan Connector:3-pin
🔻 FAN SPECS 🔻
🔹 Model:F120RGB Duo
🔹 Speed:500 ± 1800RPM
🔹 Airflow:48.58 CFM
🔹 Static:2.42mm - H2O
🔹 Noise:29 dBA
🔹 Fan Connector:4-pin
