✅ Dimensions: 464x227x446 mm. (With Feet)
🔶NZXT Premium Compact Mid-tower Case H5 ELITE เคสคอมพิวเตอร์ ของแท้ ประกันศูนย์ 2ปี🔶
✨✨✨ Details ✨✨✨

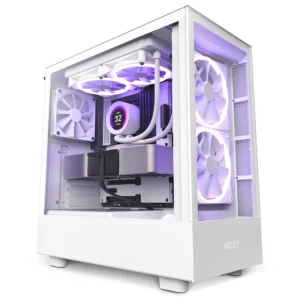

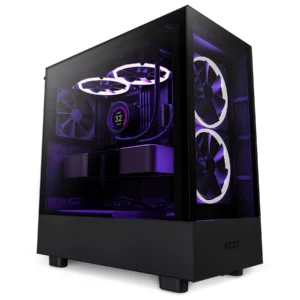

The H5 Elite features a tempered glass front panel and built-in RGB functionality to showcase various lighting components. With optimized thermal performance and intuitive cable management, the H5 Elite is an ideal chassis for most builds.
📌 Pre-installed fan on bottom inside panel is angled to cool GPU
📌 Tempered glass front panel and built-in RGB controller
📌 Perforated top panel provides optimal ventilation

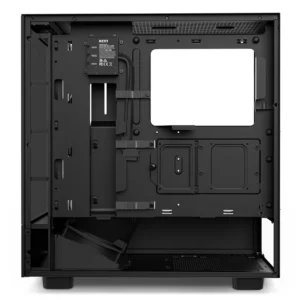

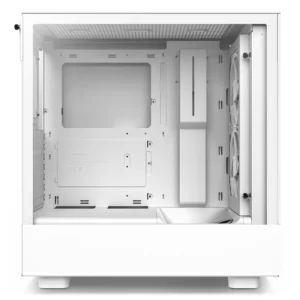

📌 Intuitive cable management system with wide channels, hooks, & straps
📌 Tool-less access to front & side panels
📌 Front panel supports 2 x 140mm fans or 280mm radiator
📌 Top panel supports up to 2 x 120mm fans or 240mm radiator
📌 Includes two pre-installed F140 RGB fans (Case Version) & one F120Q fan (Case Version)
🔻 Fan Capacity 🔻
Fan mounts offer space for two 140mm fans on the front panel and two 120mm fans on the top panel.
1️⃣ Top: 2x 120mm
2️⃣ Front: 2x 140mm / 2x 120mm
3️⃣ Rear: 1x 120mm
4️⃣ Bottom: 1x 120mm
🔻 Radiator Capacity 🔻
The top panel offers space for a 240mm radiator and the front panel provides room for a 280mm radiator.
✨✨✨ Specifications ✨✨✨
🔻 KEY SPECS 🔻
🔹 Motherboard Support:Mini-ITX, Micro-ATX, ATX
🔹 Enclosure Type:Mid-Tower
🔹 Case Material:SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)
🔻 DIMENSIONS 🔻
🔹 Height:464 mm (With Feet)
🔹 Width:227 mm
🔹 Depth:446 mm
🔹 Weight:8.1 kg
🔻 COMPATIBILITY & CLEARANCE 🔻
🔹 Max CPU Cooler Clearance:Up to 165mm
🔹 Max GPU Clearance:Up to 365mm
🔹 Front Radiator Clearance:45mm
🔹 Cable Management:Up to 23mm
🔻 FRONT I/O PORTS 🔻
🔹 USB 3.2 Gen 1 Type-A:1
🔹 USB 3.2 Gen 2 Type-C:1
🔹 Headset Audio Jack:1
🔻 INCLUDED ACCESSORIES 🔻
🔹 Installation screws:1
🔹 Cable ties:10
🔹 RGB Lighting Controller:NZXT RGB Connector: 3 (Support up to 120 LEDs)
🔻 EXPANSION SLOTS 🔻
🔹 Standard:7
🔻 DRIVE BAYS 🔻
🔹 2.5":1+1
🔹 3.5":1
🔻 FAN SUPPORT 🔻
🔹 Front:2 x F Series RGB 140mm (Case Version) included
🔹 Top:2 x 120mm
🔹 Rear:1 x 120mm
🔹 Bottom:1 x F Series Quiet 120mm (Case Version) included
🔹 Filters:All Air Intakes
🔻 RADIATOR SUPPORT 🔻
🔹 Front:Up to 280mm
🔹 Top:Up to 240mm
🔹 Rear:Up to 120mm
🔻 FAN SPECS 🔻
🔹 Model:F140 RGB Fan (Case Version)
🔹 Speed:500 - 1800 RPM
🔹 Airflow:24.85 - 89.48 CFM
🔹 Static Pressure:0.94 - 3.39 mm-H2O
🔹 Noise:20 - 32.5 dBA
🔹 Fan Connector:3-pin
🔻 FAN SPECS 🔻
🔹 Model:F120Q Airflow Fan (Case Version)
🔹 Speed:1200 ± 240 RPM
🔹 Airflow:62.18 CFM
🔹 Static Pressure:1.05 mm-H2O
🔹 Noise:25.1 dBA
🔹 Fan Connector:3-pin
