รับประกันสินค้า 5ปี สามารถออกใบกำกับภาษีได้ TranscendPCIe M.2 SSDs เอสเอสดี อินเทอร์เฟซ SATA III 6Gb/s ความจุ 500GB ความเร็วสูงสุด อ่าน 1,900MB/s ความเร็วสูงสุด เขี…
-
รับประกันสินค้า 5ปี
-
สามารถออกใบกำกับภาษีได้
-
TranscendPCIe M.2 SSDs เอสเอสดี
-
อินเทอร์เฟซ SATA III 6Gb/s
-
ความจุ 500GB
-
ความเร็วสูงสุด อ่าน 1,900MB/s
-
ความเร็วสูงสุด เขียน 900MB/s
PCIe M.2 SSDs

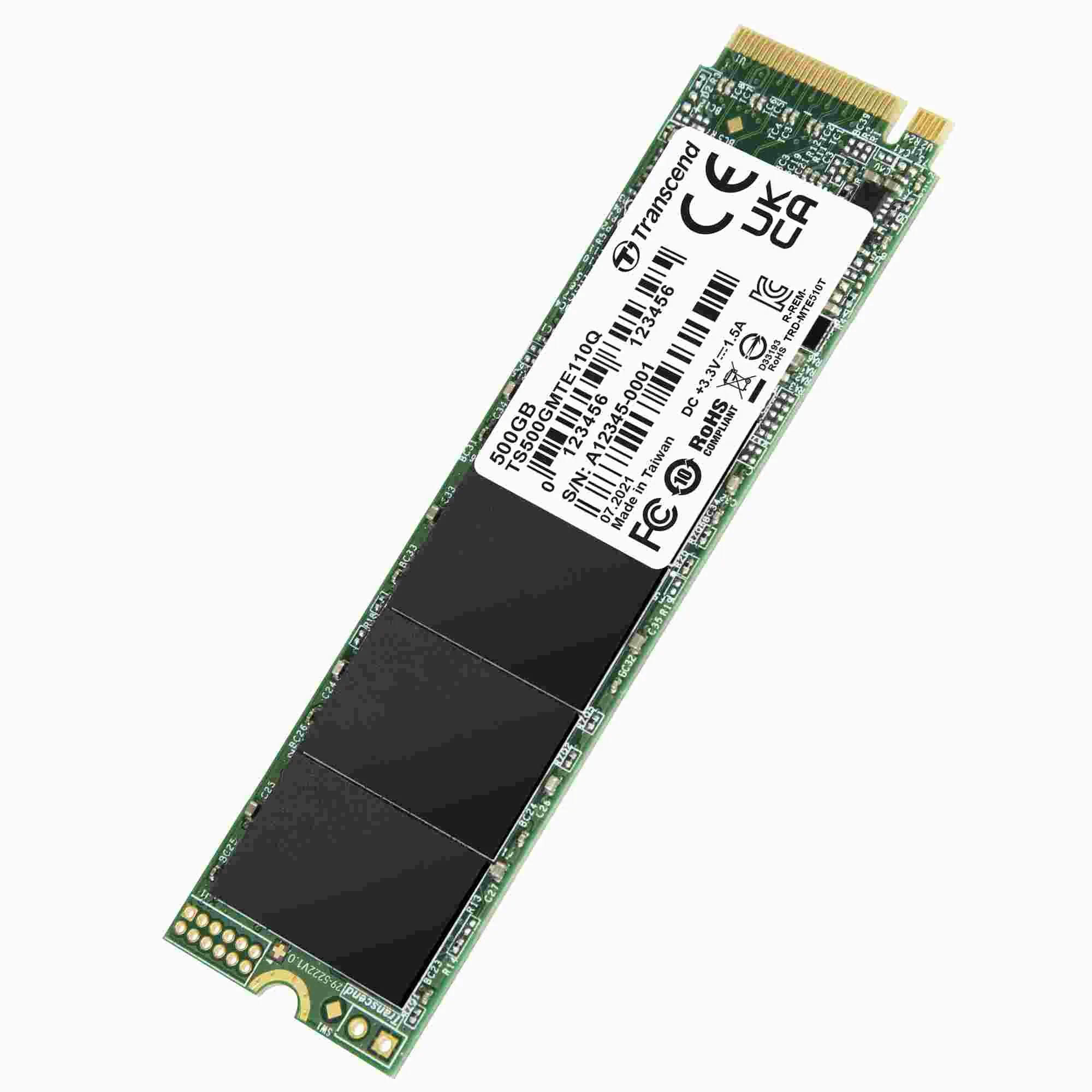

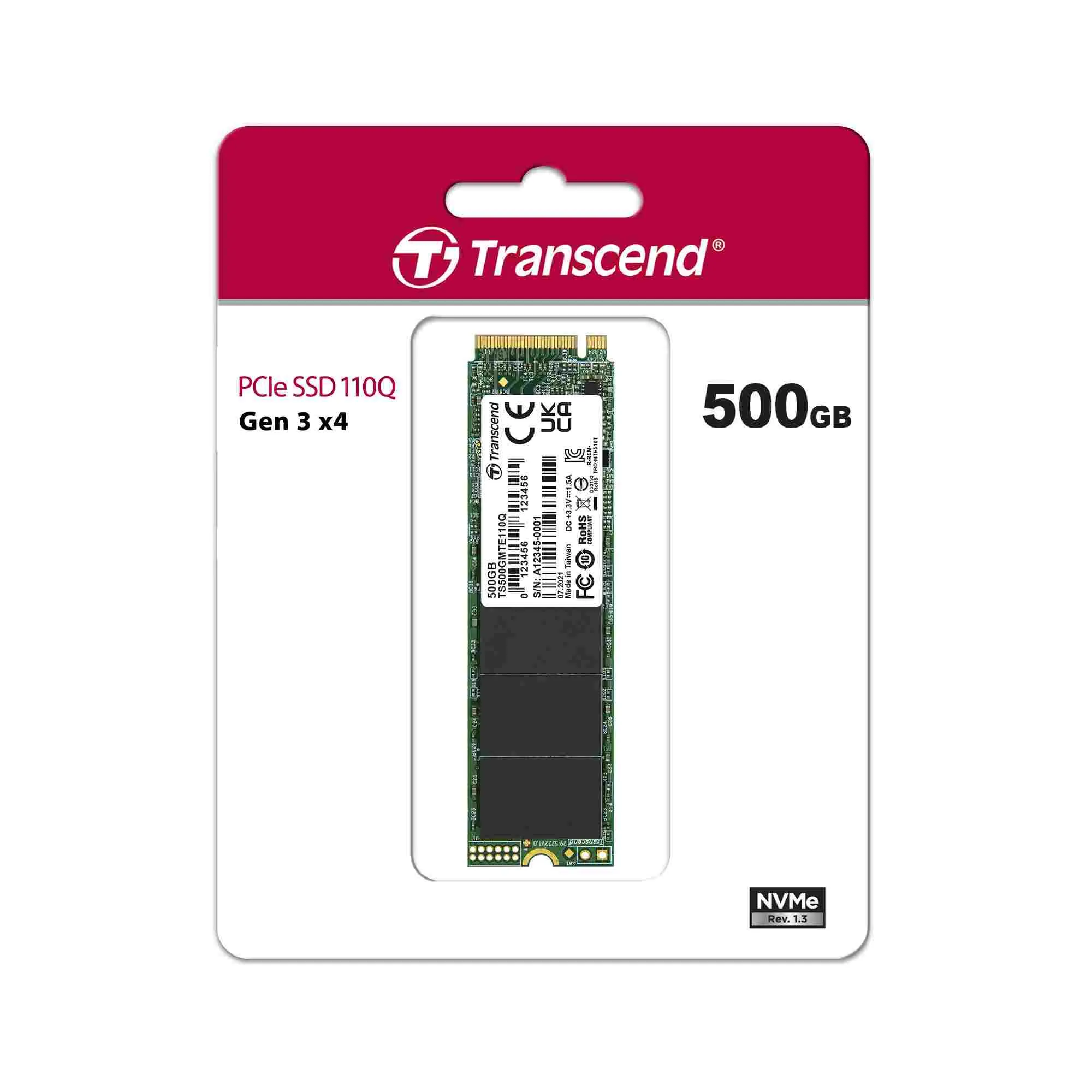

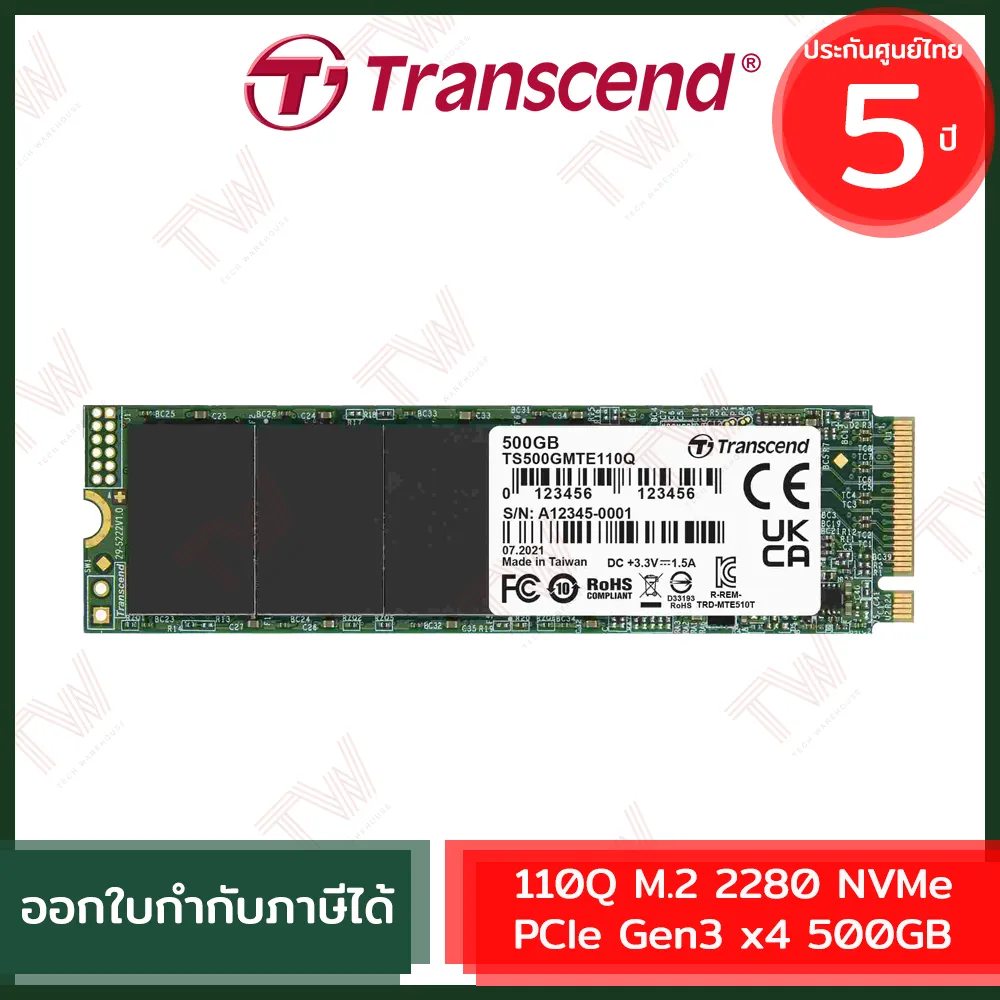

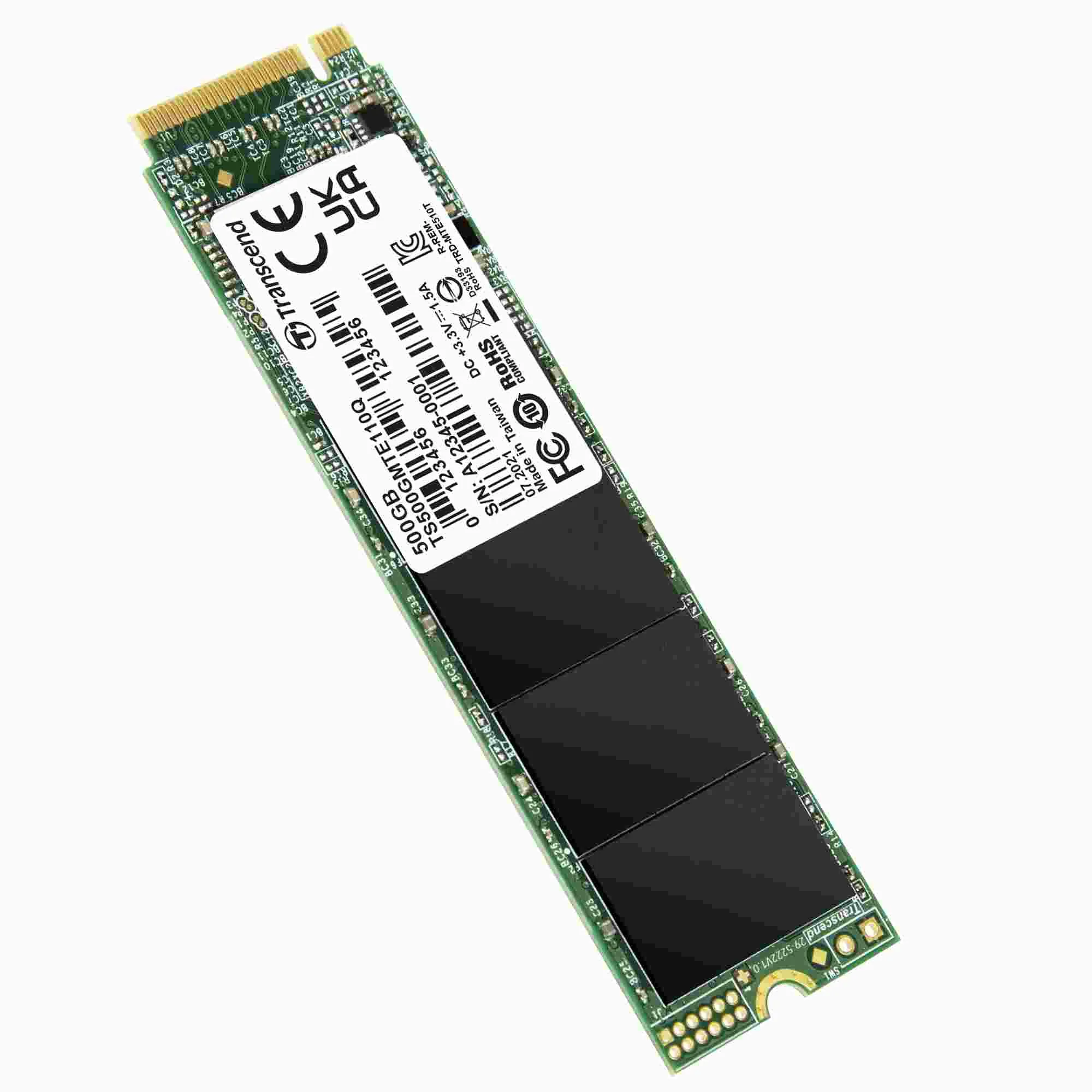

PCIe SSD 110Q
Transcend's PCIe® SSD 110Q utilizes top-notch technology QLC 3D NAND to enhance storage density that supports read/write intensive workloads. Implemented with PCI Express® Gen3 x4 high-speed interface, the read speed is up to 2,000 MB/s while write speed is up to 1,500 MB/s. To upgrade your computing devices, SSD 110Q is the most economical solution for all!
Specifications
Appearance
Dimensions Double-sided 80 mm x 22 mm x 3.58 mm (3.15" x 0.87" x 0.14")
Weight 8 g (0.28 oz)
Type M.2 2280
Interface
Bus Interface
NVMe PCIe Gen3 x4
Storage
Flash Type
QLC NAND flash
Capacity 500 GB
Operating Environment
Operating Temperature 0°C (32°F) ~ 70°C (158°F)
Operating Voltage 3.3V±5%
Performance
Sequential Read/Write (CrystalDiskMark) 500 GBup to 1,900/900 MB/s
4K Random Read/Write (IOmeter) 500GB up to 90,000/200,000 IOPS
Terabytes Written (TBW) 500 GB 150 TBW
Mean Time Between Failures (MTBF) 2,000,000 hour(s)
Drive Writes Per Day (DWPD) 0.27 (3 yrs)
***Note***
-
Speed may vary due to host hardware, software, usage, and storage capacity.
-
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
-
Terabytes Written (TBW) expresses the endurance under the highest capacity.
-
Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives.
Warranty
Certificate CE/FCC/BSMI/KC/RCM/UKCA
Warranty Three-year Limited Warranty
Warranty Policy
System Requirement
Operating System
***Note***
Systems for use with the PCIe M.2 SSD must have an M.2 connector with only an M key. B-key connectors are not compatible. Improper insertion may lead to damage. Please click here for more information.
Technology
S.M.A.R.T. ✔
Advanced Garbage Collection ✔
RAID Engine -
LDPC Coding ✔
DRAM Cache -
