✨✨✨ Specifications ✨✨✨
📌 Description

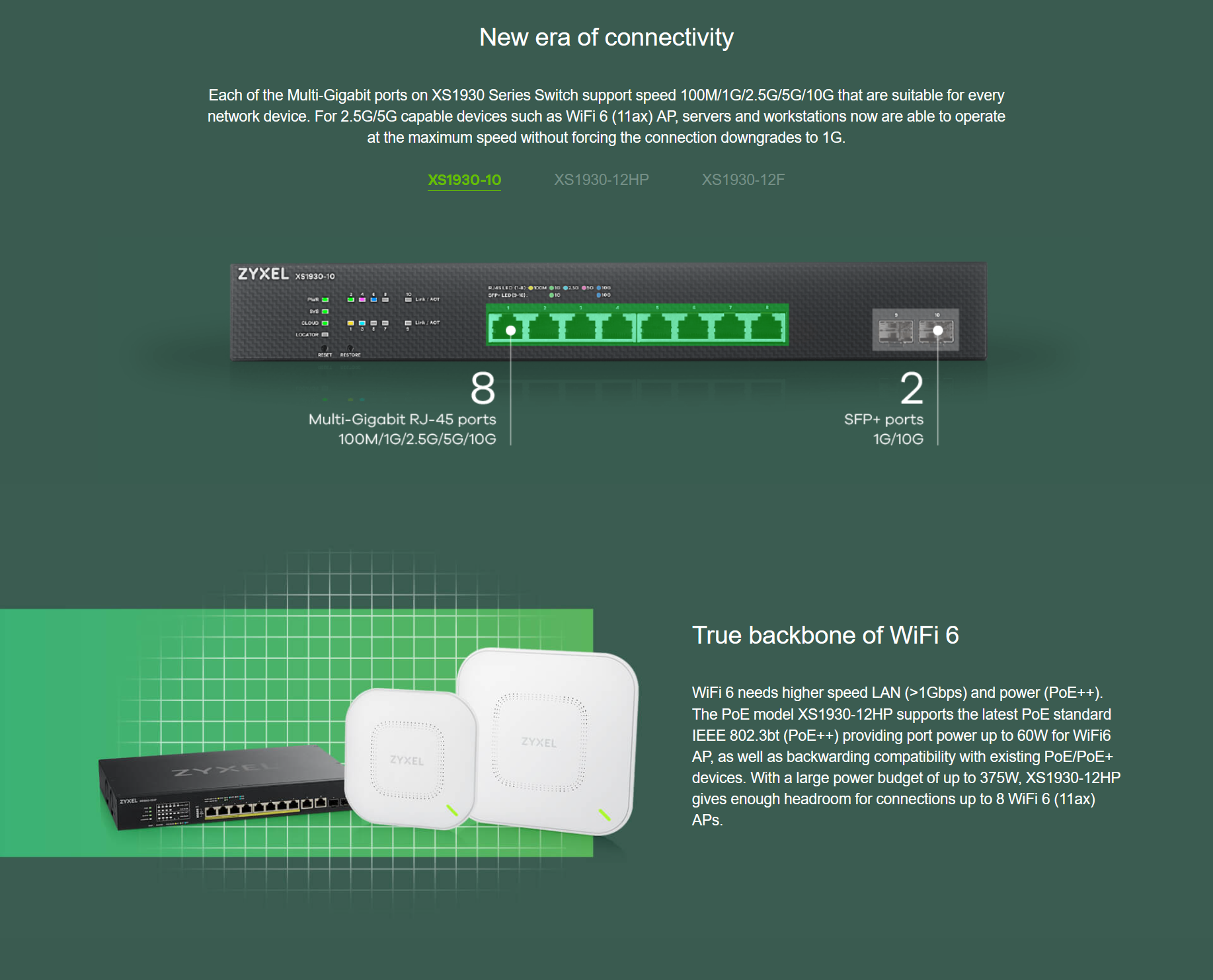

◾ Product name – 8-port 10G Multi-Gig PoE Lite-L3 Smart Managed Switch with 2 10G Multi-Gig Ports & 2 SFP+
◾ Switch class – Smart Managed
📌 Port Density
◾ Total port count – 12
◾ 100M/1G/2.5G/5G/10G Ethernet (RJ-45) – 10
◾ 10-Gigabit SFP+ – 2
📌 PoE
◾ PoE ports – 8
◾ Total PoE budget (watts) – 375
◾ IEEE 802.3bt (PoE++) – Yes
📌 Performance
◾ Switching capacity (Gbps) – 240
◾ Forwarding rate (Mpps) – 178.5
◾ Packet buffer (byte) – 2 MB
◾ MAC address table – 16 K
◾ L3 forwarding tab – Max. 512 IPv4 entries, Max. 512 IPv6 entries
◾ Routing table – 32
◾ IP interface – 32/32
◾ Flash/RAM – 32 MB/256 MB
📌 Power
◾ Input – 100 – 240 V AC, 50/60 Hz
◾ Max. power consumption (watt) – 493
📌 Physical Specifications
◾ Dimensions (WxDxH)(mm/in.) – 330 x 230 x 44/12.99 x 9.06 x 1.73
◾ Weight (kg/lb.) – 2.8/6.17
◾ Included accessories – Power cord, Rack mounting kit
📌 Environmental Specifications
◾ Operating – Temperature: -20°C to 50°C/-4°F to 122°F, Humidity: 5% to 95% (non-condensing)
◾ Storage – Temperature: -40°C to 70°C/-40°F to 158°F, Humidity: 5% to 95% (non-condensing)
◾ MTBF (hr) – 582,873
◾ Heat dissipation (BTU/hr) – 1,681.13
◾ Acoustic noise (min/max, dBA) – 28/51
